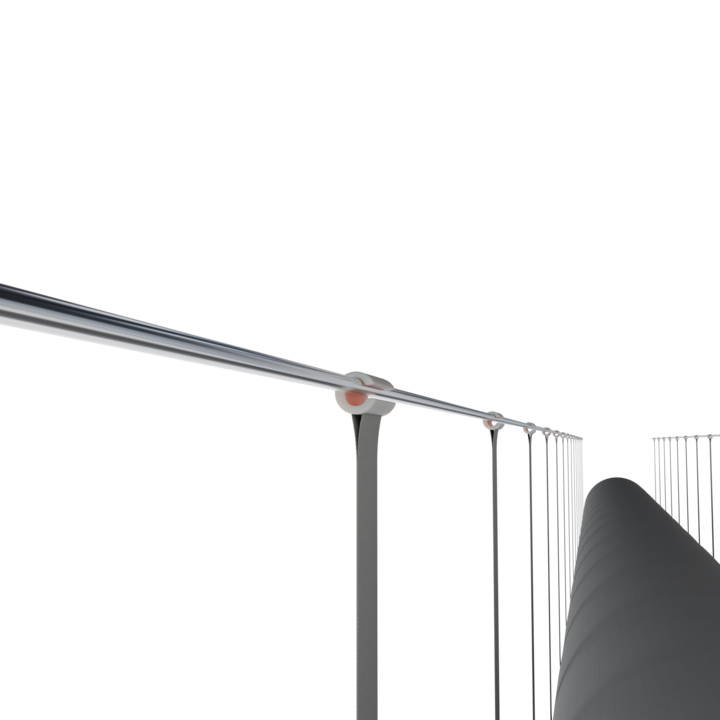

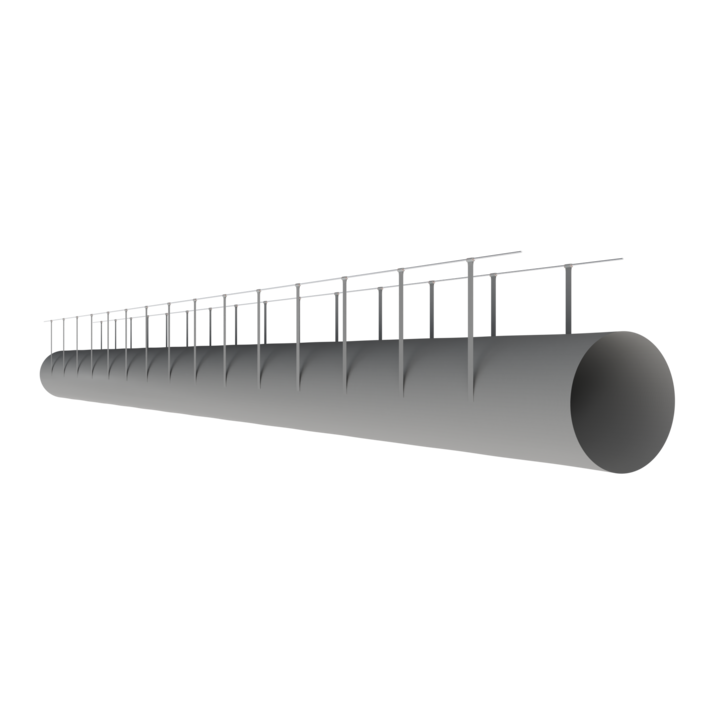

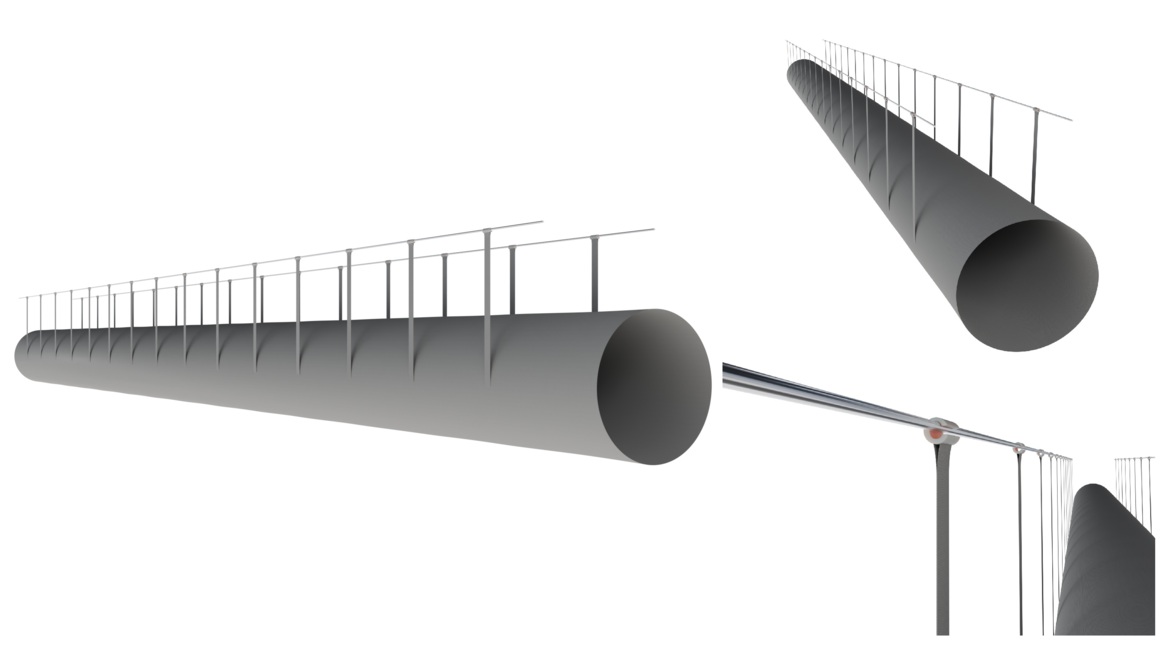

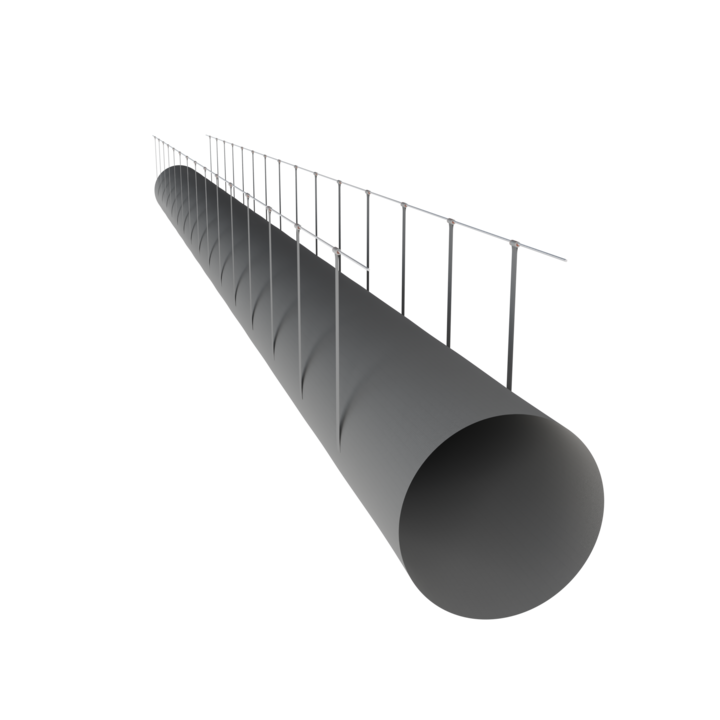

➡ One of the most economical and fastest installation methods, suitable for all duct diameters, and recommended as the standard solution for ducts over 400 mm in diameter.

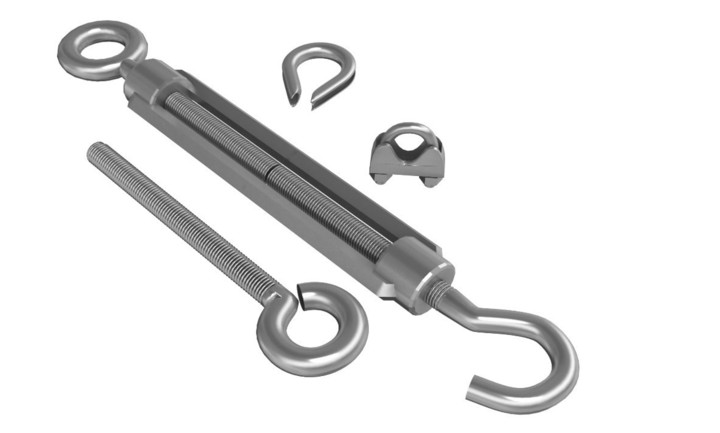

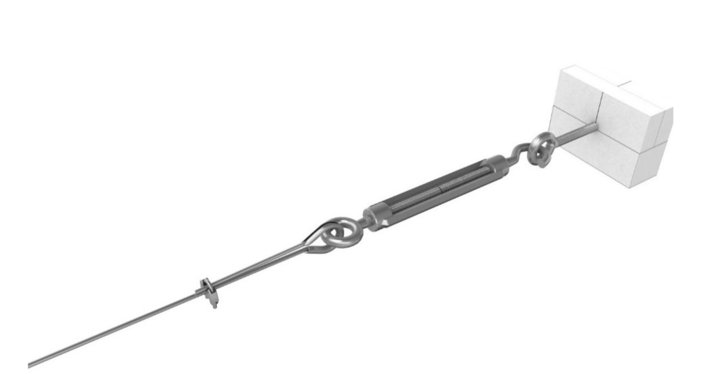

➡ Mounting components include:
-
Two galvanized or stainless steel PVC-coated wire ropes
-
Eye bolts (or Q-type toggle anchors)
-
Turnbuckles
-
Thimbles
-
Wire rope clips
The standard distance from the tape to the wire is calculated as ½ of the duct diameter + 5 cm, ensuring optimal stability and airflow alignment.
There are four available connector options for attaching the suspension tape to the steel cables:
QuickGlide – plastic hook
QuickClip – plastic carabiner
QuickClip+ – galvanized steel carabiner
QuickClip Premium – stainless steel carabiner
